Injection Molds: The Backbone of Precision Plastic Manufacturing

Injection Molds: The Backbone of Precision Plastic Manufacturing

In the realm of modern manufacturing, injection molds play a pivotal role in the production of a vast array of plastic products that permeate every aspect of our daily lives. From the tiny components within our electronic devices to the large - scale parts used in automotive interiors, injection molds are the key to efficient and precise plastic part production.

The Basics of Injection Molds

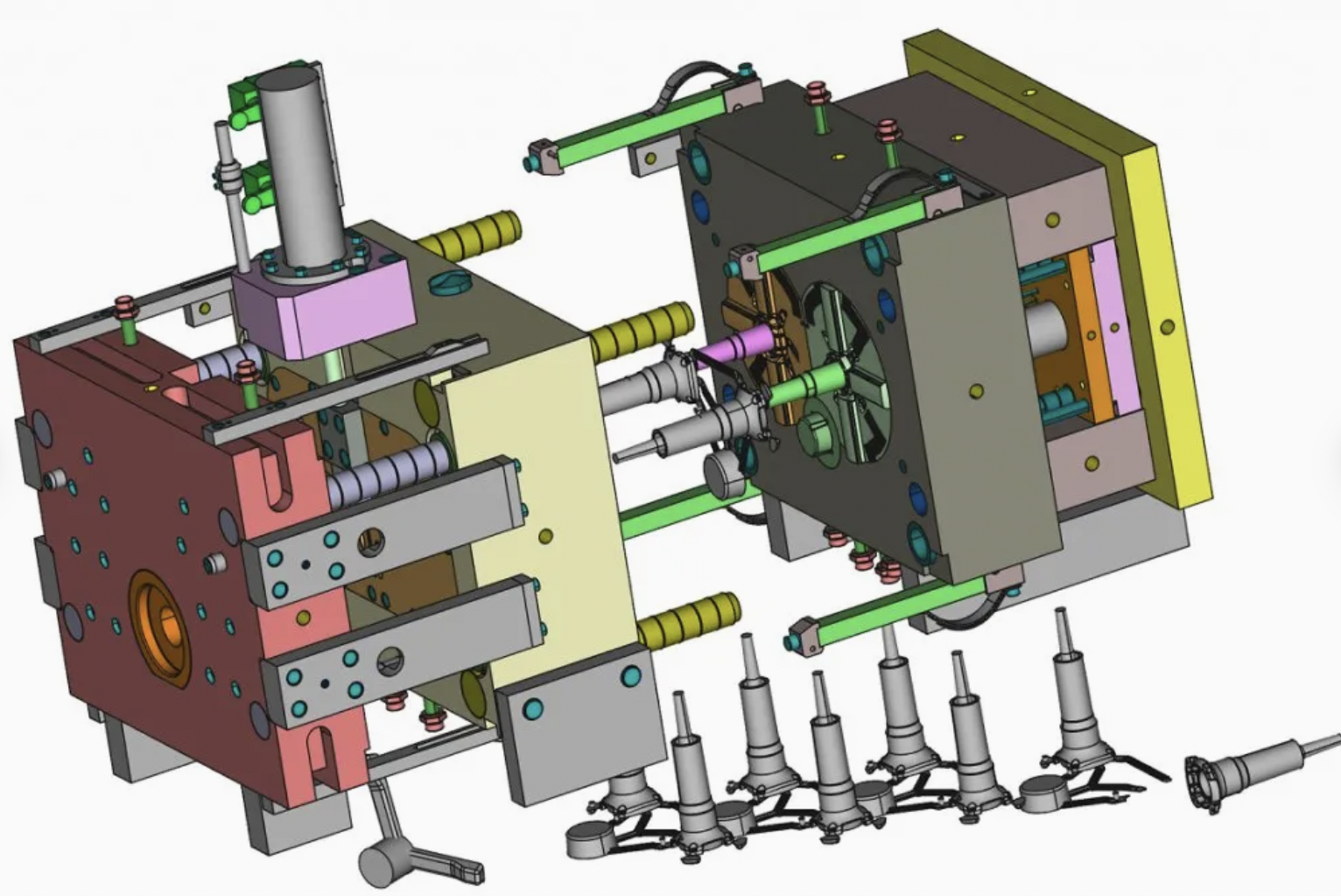

An injection mold is a specialized tool used in the injection - molding process, which is one of the most common methods for manufacturing plastic parts. It consists of two main components: the stationary mold half (also known as the cavity half) and the moving mold half (the core half). When the mold is closed, the space between these two halves forms a cavity that is the exact negative of the desired plastic part.

The injection - molding process begins with the melting of plastic pellets in an injection unit. The molten plastic is then injected under high pressure into the mold cavity through a series of channels, known as the gating system. Once the cavity is filled, the plastic cools and solidifies, taking on the shape of the mold cavity. Finally, the mold opens, and the newly formed plastic part is ejected.

Design Considerations for Injection Molds

1. Part Geometry: The design of the injection mold is intricately tied to the geometry of the plastic part. Complex part geometries may require additional features in the mold, such as slides, lifters, or cores, to create undercuts, holes, or other intricate details. For example, a plastic toy with a hollow interior and multiple moving parts will demand a highly sophisticated mold design to ensure proper formation and functionality.

2. Material Compatibility: Different plastics have varying properties, such as melt temperature, shrinkage rate, and flow characteristics. The mold design must be tailored to the specific plastic material being used. For instance, materials with high shrinkage rates, like some types of polypropylene, require careful consideration in mold design to minimize dimensional inaccuracies in the final product.

3. Cooling System Design: Efficient cooling is crucial for reducing cycle times and ensuring consistent part quality. The mold's cooling system, typically consisting of channels through which a coolant (usually water) flows, must be strategically designed to evenly dissipate heat from the plastic as it solidifies. Poor cooling can lead to warping, sink marks, or longer production times.

Manufacturing Injection Molds

The manufacturing of injection molds is a highly precise and often complex process. It typically involves several advanced machining techniques:

1. CNC Machining: Computer - Numerical - Control (CNC) machining is widely used to create the intricate shapes and features of injection molds. CNC milling, turning, and EDM (Electrical Discharge Machining) processes can achieve extremely tight tolerances, ensuring that the mold components fit together perfectly. EDM, for example, is particularly useful for creating complex cavities and details that are difficult to machine using traditional methods.

2. Surface Finishing: After the basic shape of the mold is machined, surface finishing processes are employed to achieve the desired surface quality. Polishing the mold surfaces can enhance the appearance of the final plastic part, reduce friction during part ejection, and prevent the accumulation of plastic residue in the mold.

Maintenance and Lifespan of Injection Molds

Regular maintenance is essential to extend the lifespan of injection molds and ensure consistent part quality. Maintenance tasks include cleaning the mold to remove plastic residue, checking for wear and tear on moving parts (such as slides and ejector pins), and lubricating components to prevent friction - related damage. With proper maintenance, a well - designed injection mold can produce hundreds of thousands or even millions of parts over its lifespan. However, factors such as the complexity of the mold, the frequency of use, and the quality of the materials used in mold construction can all impact its overall durability.

In summary, injection molds are the cornerstone of plastic manufacturing, enabling the mass production of high - quality plastic parts with remarkable precision and efficiency. Through careful design, advanced manufacturing techniques, and proper maintenance, injection molds continue to drive innovation and productivity in a wide range of industries, from consumer goods to aerospace and beyond.
