The Interplay Between Gating System, Cooling System, Mold Structure, and Injection Molding Process

The Interplay Between Gating System, Cooling System, Mold Structure, and Injection Molding Process


1. Introduction


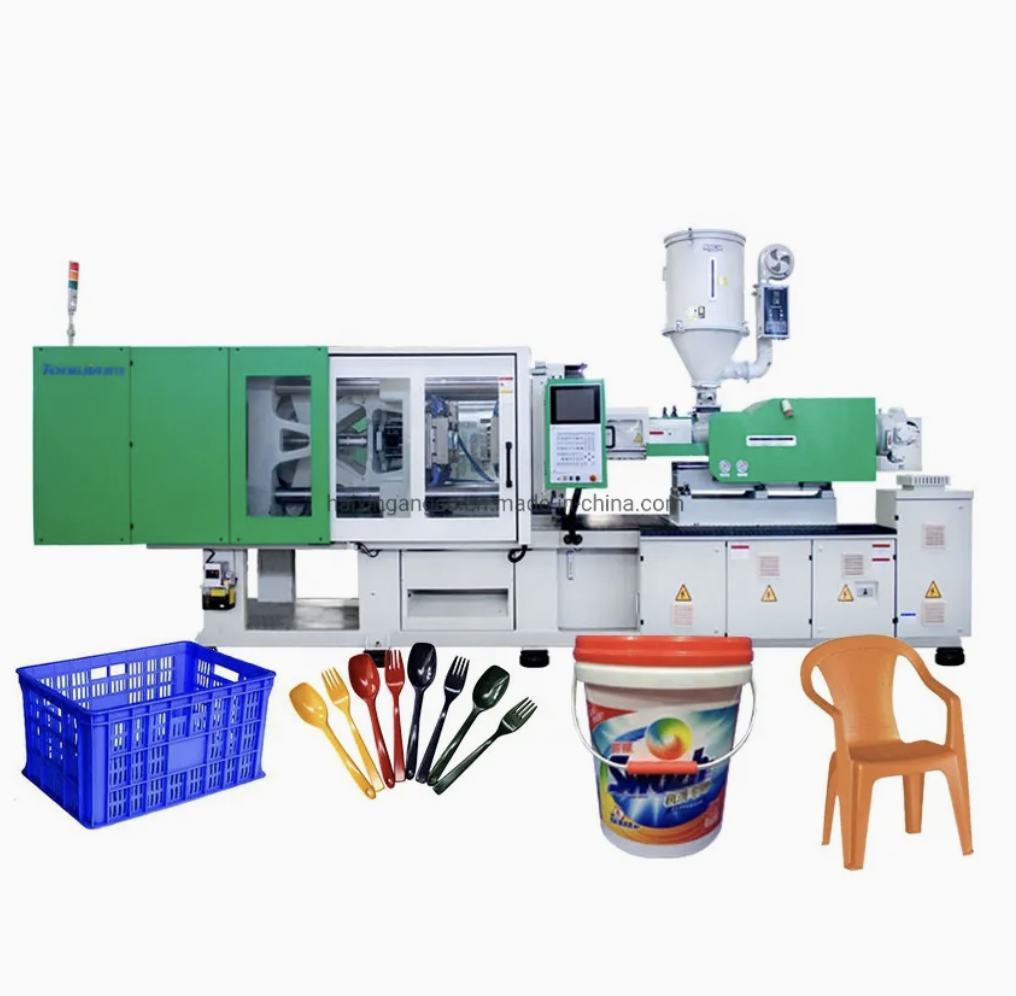

Injection molding is a highly integrated manufacturing process where the design and performance of the gating system, cooling system, and mold structure directly influence part quality, production efficiency, and cost. These three elements are interdependent, and their optimization requires a deep understanding of their roles and interactions within the injection molding workflow. This report explores their relationships and provides actionable insights for achieving robust process control.


2. Gating System: The Pathway for Material Flow


The gating system governs how molten plastic enters the mold cavity, affecting filling behavior, pressure distribution, and defect formation.


Key Components:

- Sprue: Transfers molten plastic from the nozzle to the mold.

- Runners: Distribute material to multiple cavities or gates.

- Gates: Control flow rate and direction at the mold cavity entrance.


Impact on the Process:

1. Filling Uniformity:

- Poor gate placement can cause uneven filling, leading to weld lines, air traps, or short shots.

- Example: A gate positioned in a thin section may freeze prematurely, blocking material flow.


2. Pressure Requirements:

- Smaller gates increase shear stress and injection pressure, potentially degrading polymer chains.


3. Cycle Time:

- Gate size and type (e.g., edge, submarine, or hot runner gates) affect packing time and cooling efficiency.


Design Guidelines:

- Use flow simulation software to optimize gate location and size.

- Balance runner systems for multi-cavity molds to ensure uniform filling.

- Select gate types based on part geometry and material (e.g., hot runners for reduced waste).


3. Cooling System: Managing Thermal Dynamics

The cooling system regulates mold temperature, directly influencing cycle time, dimensional stability, and residual stress.


Key Components:

- Cooling Channels: Circulate coolant (water or oil) to extract heat from the mold.

- Baffles/Bubblers: Enhance heat transfer in hard-to-reach areas.

- Thermocouples: Monitor and control mold temperature.


Impact on the Process:

1. Cycle Time:

- Efficient cooling reduces solidification time, enabling faster cycles.

- Poor cooling design can create "hot spots," extending cycle times by 20–30%.


2. Part Quality:

- Non-uniform cooling causes warpage due to differential shrinkage.

- Example: Thick sections cool slower, leading to sink marks or voids.


3. Residual Stress:

- Rapid cooling increases internal stress, reducing part durability.


Design Guidelines:

- Implement conformal cooling channels for complex geometries to maintain uniform temperature.

- Maintain a coolant temperature differential of ≤10°C across the mold.

- Prioritize cooling near thick sections and high-stress areas.


4. Mold Structure: The Foundation of the Process

Mold structure defines the part’s geometry, ejection mechanism, and alignment, directly interacting with the gating and cooling systems.


Key Components:

- Cavity and Core: Form the part’s shape.

- Parting Line: Separates mold halves; alignment affects flash and tolerances.

- Ejection System: Includes ejector pins, sleeves, or air valves for part removal.

- Venting: Prevents gas traps that cause burns or incomplete filling.


Impact on the Process:

1. Gating and Cooling Integration:

- Mold structure limits where gates and cooling channels can be placed.

- Example: A complex core may obstruct coolant flow, necessitating creative cooling solutions.


2. Ejection Efficiency:

- Inadequate draft angles or ejector pin placement can damage parts during removal.


3. Maintenance and Durability:

- Mold materials (e.g., hardened steel vs. aluminum) affect heat transfer and wear resistance.


Design Guidelines:

- Design parting lines to minimize flash and simplify gate/cooling channel placement.

- Incorporate self-aligning features (e.g., leader pins) to ensure mold integrity.

- Use durable coatings (e.g., DLC) to extend mold life in high-wear areas.


5. Synergistic Relationships

The gating system, cooling system, and mold structure must work cohesively to optimize the injection molding process:


A. Gating and Cooling:

- Conflict: Larger gates improve filling but may obstruct cooling channel placement.

- Solution: Use hot runner systems to eliminate cold runners, freeing space for cooling channels.


B. Cooling and Mold Structure:

- Conflict: Complex mold geometries (e.g., undercuts) limit cooling channel accessibility.

- Solution: Employ additive manufacturing to create conformal cooling channels around cores.


C. Mold Structure and Gating:

- Conflict: Parting line location may restrict gate positions, affecting flow balance.

- Solution: Use 3-plate molds or valve-gated hot runners for flexible gating.


6. Process Parameter Interactions


The design of these systems dictates optimal process parameters:

- Melt Temperature: Affected by shear heating in the gating system.

- Packing Pressure: Compensates for shrinkage but depends on gate freeze-off time.

- Cooling Time: Determined by cooling system efficiency and part thickness.


Case Study:

A polypropylene automotive panel exhibited warpage due to uneven cooling. Redesigning the cooling channels and relocating gates to balance flow reduced cycle time by 15% and eliminated warpage.


7. Best Practices for Integration

1. Early Collaboration: Involve mold designers, process engineers, and material suppliers during the design phase.

2. Simulation Tools: Use Moldflow or Moldex3D to predict interactions between gating, cooling, and mold structure.

3. Prototyping: Test mold designs with short-run productions to identify integration flaws.


8. Conclusion

The gating system, cooling system, and mold structure are inseparable pillars of injection molding. Their interdependence requires a holistic design approach to balance flow dynamics, thermal management, and mechanical functionality. By leveraging advanced simulation, innovative manufacturing techniques (e.g., conformal cooling), and cross-disciplinary collaboration, manufacturers can achieve high-quality parts with reduced costs and lead times.


Final Recommendation: Prioritize modular mold designs to accommodate future modifications in gating or cooling requirements.


This report highlights the critical need for systems thinking in injection molding, where optimizing individual components is insufficient without addressing their interconnected roles in the broader process.
