The Principle and Process of Injection Molding

Injection molding is a widely - adopted manufacturing process in modern industry, especially for the production of plastic products. It offers high - volume production with excellent precision and repeatability.

Principle of Injection Molding

The principle of injection molding is based on the transformation of plastic materials from a solid to a molten state and then into a solid - shaped product. Plastics, which are typically thermoplastics or thermosets, are used in this process. Thermoplastics, such as polyethylene (PE), polypropylene (PP), and polystyrene (PS), can be melted and re - solidified multiple times. Thermosets, like epoxy resins, undergo a chemical reaction during curing and cannot be remelted once set.

The process begins with plastic pellets being fed into a hopper. These pellets are then conveyed into a heated barrel. Inside the barrel, a screw rotates, which not only transports the pellets forward but also compresses and shears them. As the pellets move along the heated barrel, they absorb heat and gradually melt. The heat source can be electrical heaters wrapped around the barrel. The rotation of the screw also generates frictional heat, which contributes to the melting process. Once the plastic is fully molten, it is in a highly viscous and flowable state, ready for injection.

The Process of Injection Molding

1. Clamping

◦ The first step in the injection - molding process is the clamping of the mold. The mold consists of two halves: a fixed half (the cavity) and a movable half (the core). The clamping unit exerts a high - force to hold the two mold halves tightly together. This force is crucial to prevent the molten plastic from escaping during the injection phase. The clamping force required depends on the size and complexity of the mold, as well as the pressure needed for injection. For example, for large - scale molds or molds with complex geometries, a much higher clamping force is necessary.

2. Injection

◦ Once the mold is clamped, the molten plastic is injected into the closed mold cavity. The screw in the barrel acts as a piston, pushing the molten plastic through a nozzle and into the sprue, which is the main channel that leads into the mold. From the sprue, the plastic flows through a runner system, which distributes the plastic evenly to the individual cavities in the mold. The injection pressure and speed are carefully controlled parameters. High - pressure injection is often used initially to quickly fill the mold cavities, especially for complex - shaped or thin - walled products. However, the pressure and speed need to be adjusted according to the characteristics of the plastic material and the mold design to avoid issues such as flash (excess plastic around the part edges), air entrapment, or incomplete filling.

3. Holding and Packing

◦ After the mold cavities are filled, a holding pressure is applied. During the cooling process, the plastic shrinks. The holding pressure helps to compensate for this shrinkage by continuously supplying additional plastic to the cavities. This ensures that the final product has the correct dimensions and density. The holding pressure is maintained for a specific period, known as the holding time. The magnitude and duration of the holding pressure are determined by factors such as the type of plastic, the wall thickness of the product, and the desired part quality. For example, products with thicker walls may require a longer holding time and higher holding pressure to prevent sink marks.

4. Cooling

◦ Once the holding phase is complete, the cooling stage begins. Cooling is essential for solidifying the plastic in the mold. Most molds are equipped with a cooling system, usually a network of channels through which a cooling medium, such as water or a coolant, circulates. The cooling rate affects the internal stress distribution within the product. A uniform cooling rate helps to minimize internal stresses, which can otherwise cause warpage or cracking of the product. The cooling time depends on various factors, including the thickness of the product, the thermal properties of the plastic, and the efficiency of the cooling system. Thicker - walled products generally require longer cooling times.

5. Ejection

◦ After the plastic has cooled and solidified sufficiently, the mold is opened. Ejection pins, which are located in the movable half of the mold, push the finished product out of the mold cavities. The ejected products may then undergo post - processing operations, such as trimming to remove any excess plastic (such as runners and gates), polishing, or assembly with other components.

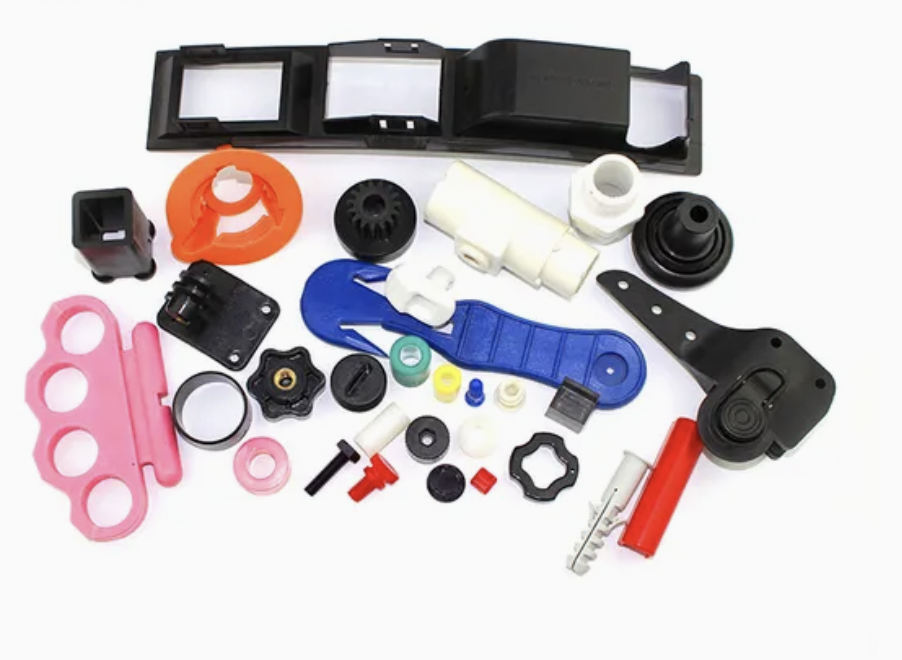

Injection molding is a complex yet highly efficient manufacturing process. By precisely controlling each stage of the process, manufacturers can produce a wide variety of high - quality plastic products, meeting the diverse needs of different industries, from consumer goods to automotive parts and medical devices.
