What Is Upset Forging?

Upset forging involves the deformation of a metal workpiece by compressing its length to increase its diameter and achieve the desired shape. This process is done at ambient temperatures (cold) or elevated temperatures (hot), depending on the material and the required properties of the final product.

Advantages of Upset Forging

1. Enhanced Strength: Upset forging aligns the grain flow parallel to the shape of the component, resulting in superior strength and fatigue resistance. This grain refinement is crucial for parts subjected to cyclic loads or high-stress applications.

2. Dimensional Accuracy: The process provides high dimensional control and accuracy, especially in the critical sections of the component. This precision reduces the need for extensive post-forging machining.

3. Material Efficiency: Upset forging allows for efficient use of raw materials, minimizing waste and optimizing material properties. The reduction in material waste translates to cost savings in production.

4. Improved Surface Finish: The process delivers a smooth surface finish, particularly when performed as a cold forging operation. This characteristic reduces the need for additional finishing operations.

5. Versatility: Upset forging can be applied to a wide range of metals, including steel, aluminum, copper, and various alloys, and is suitable for both small and large-scale production.

The Upset Forging Process

Upset forging involves several critical steps to transform a raw workpiece into a robust and precise component. Here’s a detailed overview of the process:

1. Material Selection: The first step is selecting the appropriate metal or alloy to ensure it meets the specific requirements of the application. The choice of material influences the forging temperature and required equipment.

2. Heating (for Hot Upset Forging): For hot upset forging, the workpiece is heated to a temperature above its recrystallization point to increase its malleability and reduce the risk of cracking. Heating ensures the metal can be deformed more easily and uniformly.

3. Lubrication (for Cold Upset Forging): When performing cold upset forging, lubricants are applied to the workpiece to reduce friction between the metal and the forging dies, extending die life and improving the quality of the finished part.

4. Placement and Alignment: The workpiece is positioned and aligned in the upsetting machine, ensuring that the deformation is applied accurately to the desired segment of the metal.

5. Compression: High compressive forces are applied to the length of the workpiece, increasing its diameter. This step is repeated as necessary to achieve the required shape and dimensions.

6. Trimming and Finishing: After forming, any excess material, known as flash, is trimmed away. The forged part may undergo additional finishing operations such as machining, polishing, or heat treatment to meet specific tolerances and surface requirements.

7. Quality Control: The final step involves rigorous quality checks, including dimensional inspections, surface assessments, and mechanical testing, to ensure the component meets the specified standards.

Types of Upset Forging

Upset forging techniques can be categorized based on the temperature at which the process is performed:

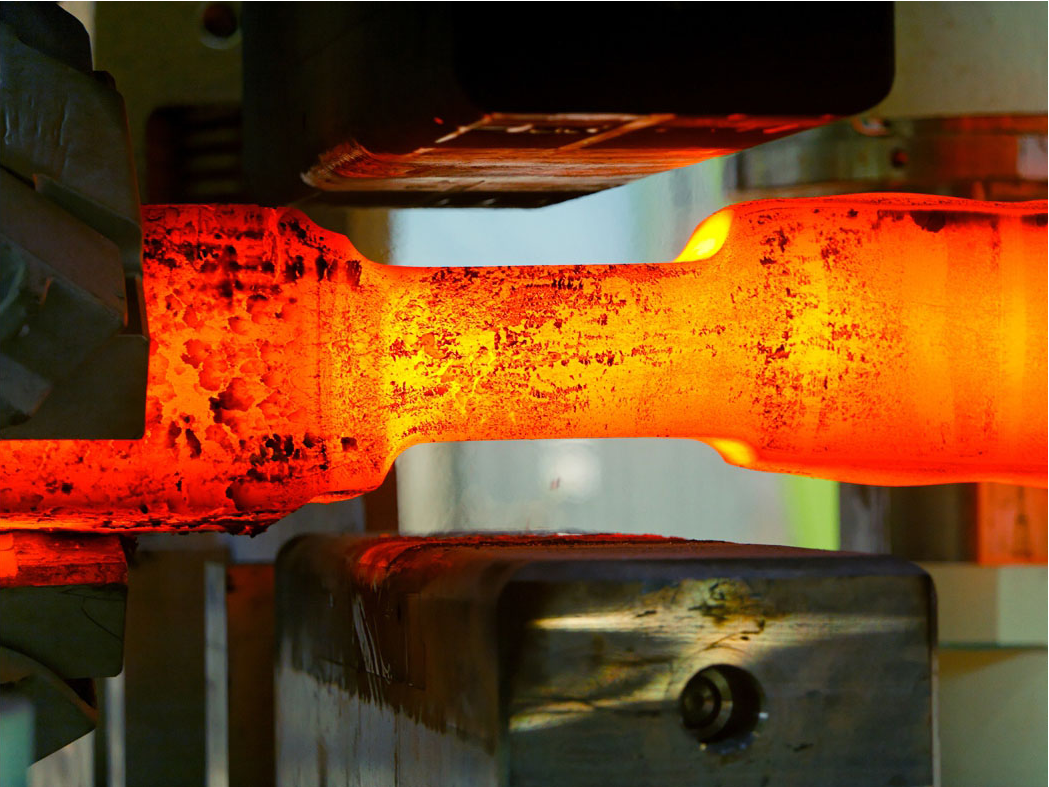

1. Hot Upset Forging: Hot upset forging involves deforming the workpiece at high temperatures, above its recrystallization point. This process is preferable for larger components and metals with high ductility. It allows for significant shape changes and minimizes the risk of material cracking.

2. Cold Upset Forging: Cold upset forging is carried out at or near room temperature. This method benefits from work hardening, resulting in enhanced strength and a superior surface finish. Cold forging is ideal for smaller parts and applications requiring high precision.

Common Applications of Upset Forging

Upset forging is employed across various industries to manufacture components that demand high durability, strength, and precise dimensions:

1. Automotive Industry: Components like bolts, nuts, and axles are commonly produced using upset forging due to the process's ability to enhance strength and fatigue resistance.

2. Aerospace Industry: Critical aircraft components, such as fasteners, shafts, and engine parts, benefit from the high strength and uniformity provided by upset forging.

3. Construction Industry: Upset forging is used to manufacture structural components, such as anchor bolts and couplings, which require high durability and load-bearing capacity.

4. Manufacturing: Various mechanical components, such as gears, shafts, and flanges, are produced using upset forging to ensure reliability and longevity under operational stresses.

Conclusion

Upset forging is a specialized and effective metalworking process that significantly enhances the mechanical properties of metal components. By focusing on increasing the diameter through compressive forces, the process ensures superior strength, precision, and material efficiency. Its versatility and ability to produce high-quality parts make upset forging a valuable technique across numerous industries, from automotive to aerospace and construction.

FAQs

What is the primary purpose of upset forging? The primary purpose of upset forging is to increase the diameter of a segment of a metal workpiece by compressing its length, enhancing the component's strength and mechanical properties.

What metals can be used in upset forging? Upset forging can be applied to a wide range of metals, including steel, aluminum, copper, and various alloys.

How does upset forging improve component strength? Upset forging aligns the grain flow of the metal parallel to the component's shape, enhancing strength and fatigue resistance.

What is the difference between hot and cold upset forging? Hot upset forging is performed above the metal's recrystallization temperature, allowing significant deformation, while cold upset forging is conducted at room temperature, benefiting from work hardening and producing a superior surface finish.

What industries benefit from upset forging? Industries such as automotive, aerospace, construction, and general manufacturing benefit from upset forging due to the process's ability to produce strong, precise, and high-quality components.
